Automatic reset: Available with both normally open and normally closed switch logic
Variety of accessories and mounting options
Compact dimensions, high load capacity
High operating speed
Current insensitive
ROHS Compliant
Applications
HVAC
Major appliances
Medical/lab equipment
Vending machines
Electric space heaters
Overhead projectors
Hair care appliances
Audio speakers
Copiers
Refrigeration compressors
Commercial food equipment
Vacuum cleaners
Medical equipment
Gas furnace protection
Power supplies
Communications equipment
Welding equipment
Thermtrol offers the GT43 line of 3/4” disc fixed temperature thermostats. Approved by numerous testing agencies, all GT thermostats pass a series of rigorous
quality control checks including continuity function,contact resistance, and dielectric strength. Excellent multipurpose thermostat with increased contact capacity. A
wide range of operating temperatures permit the flexibility to meet your needs.

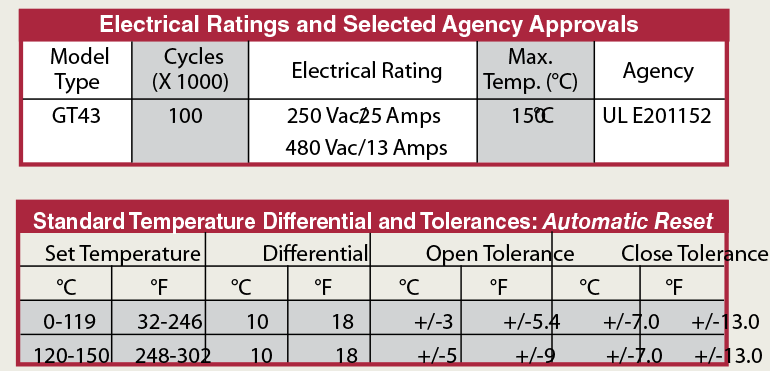

Details & Specifications
Auto Reset Construction

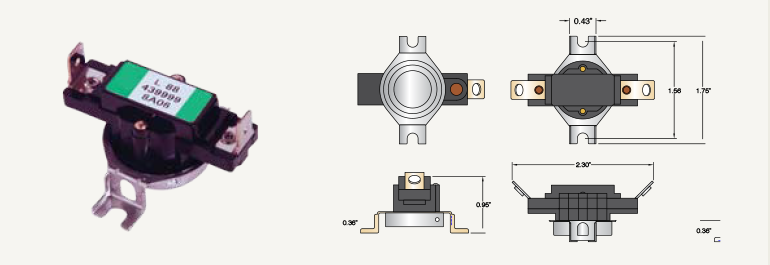

Options shown: Vertical 1/4” Q.C. Terminals and Surface Mount Flange
