GT Series Ceramic Disc Thermostats (GT)

GT Series Ceramic Disc Thermostats Thermtrol offers the GT line of 1/2” disc fixed temperature thermostats. Approved by numerous testing agencies, all GT thermostats pass a series of rigorous quality control checks including continuity, function, contact resistance and dielectric strength. Excellent multipurpose thermostat available in both automatic reset and push button manual reset configurations. A wide range of operating temperatures, as well as a small size and a variety of physical configurations, permit the flexibility to meet your specific needs.

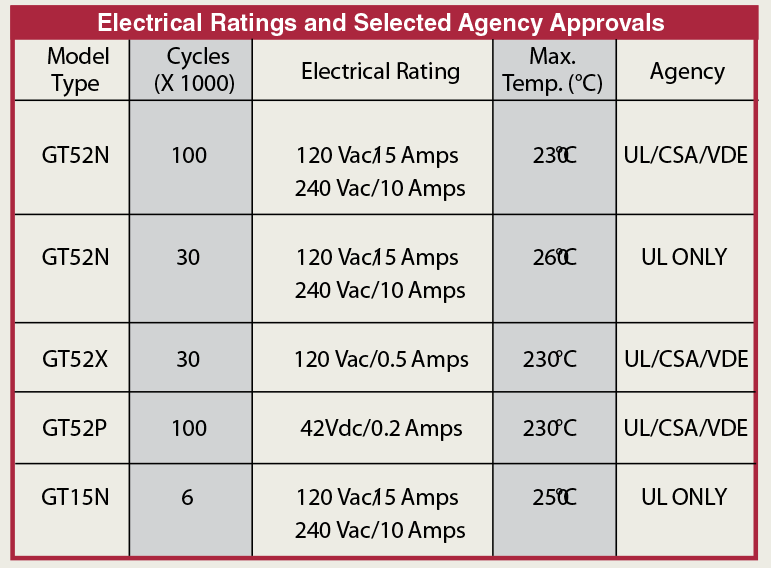

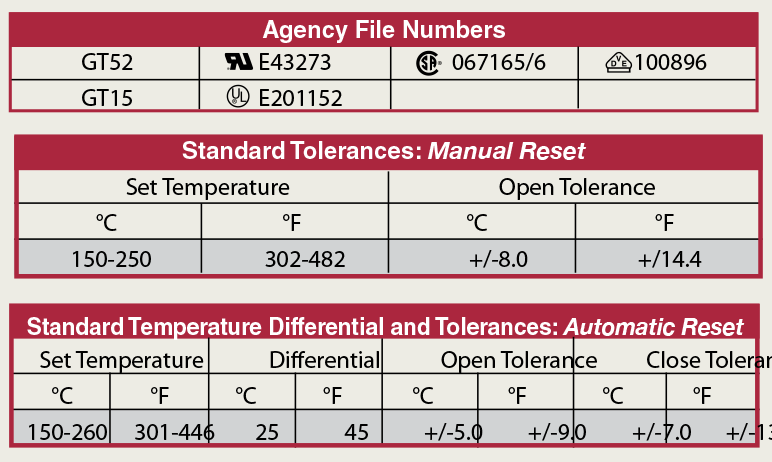

Details & Specifications

Auto Reset Construction

Options shown: Vertical 1/4” Q.C. Terminals and an 8-32 Stud Mount Cap

Manual Reset Construction

Options shown: Horizontal 1/4” Q.C. Terminals and Airstream Mount Flange
