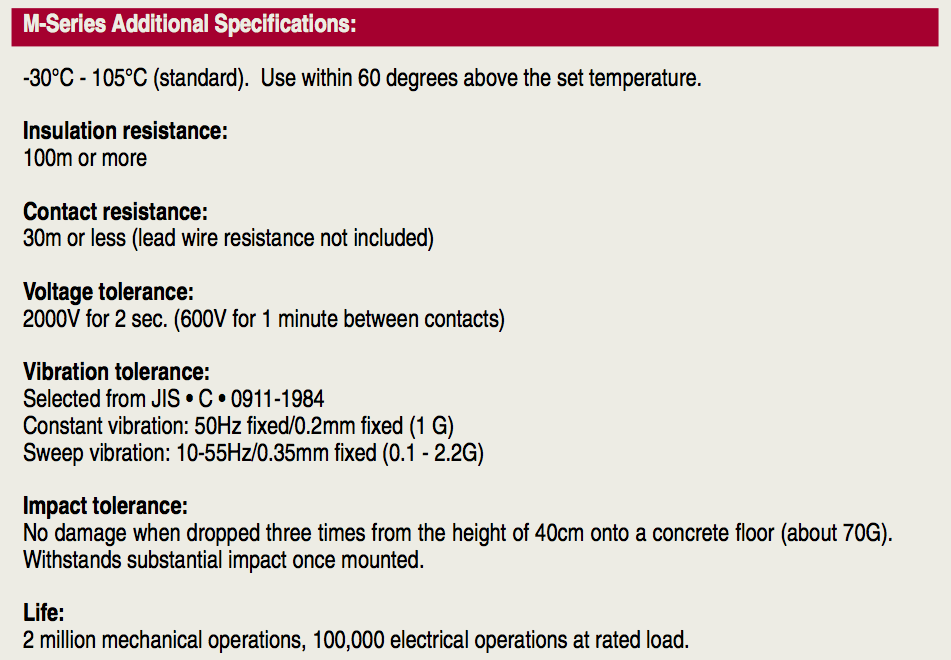

The Thermtrol M Series is a premium thermostat for premium applications requiring a long life, regulating thermostat. The long life capability of the M Series derives from its semi-permanent snap spring with flat, non-distorting twin bi-metal construction. A narrow differential maintains uniform temperature stability and a low thermal-resistant plastic housing permits the M Series to react quickly to temperature variations. All M Series thermostats are built on a per order basis to your temperature specifications and are not available from stock. Details & Specifications

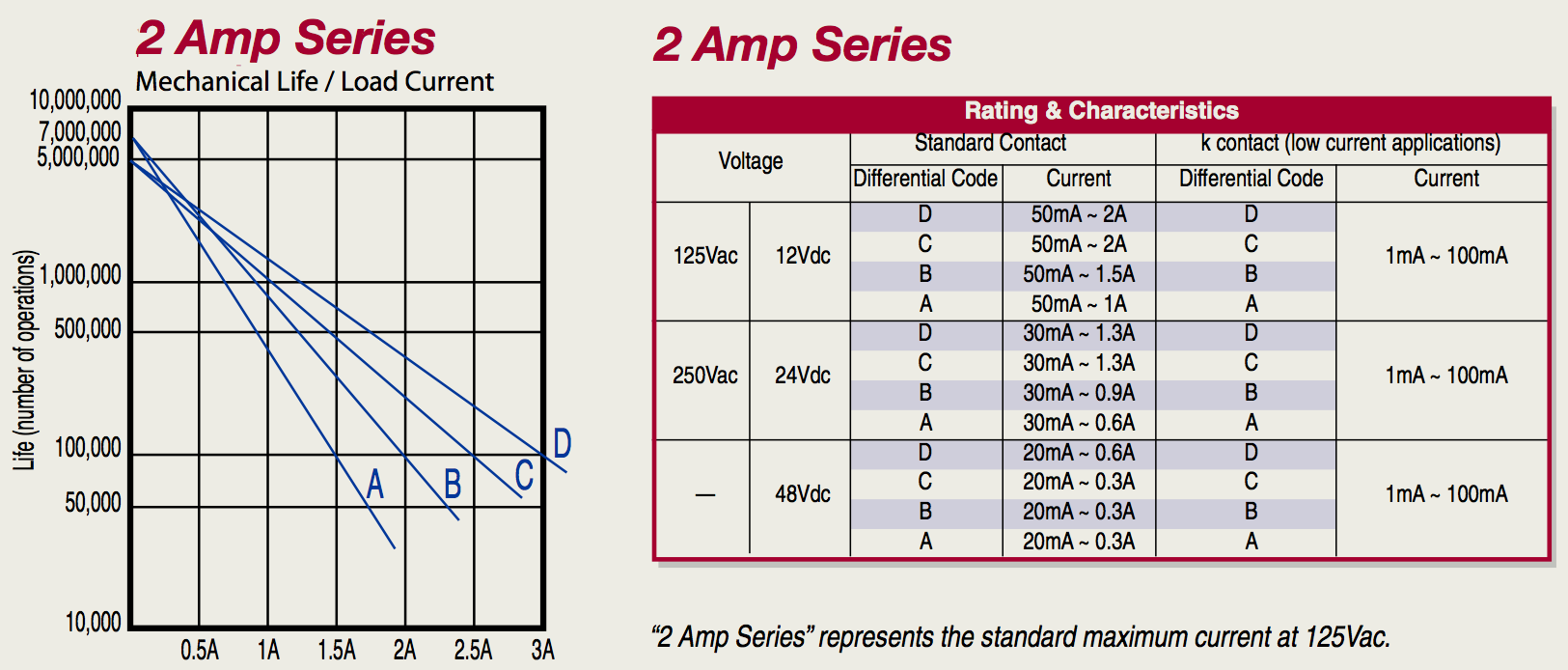

2 Amp Series Set Temperature Availability from -20°C to 100°C

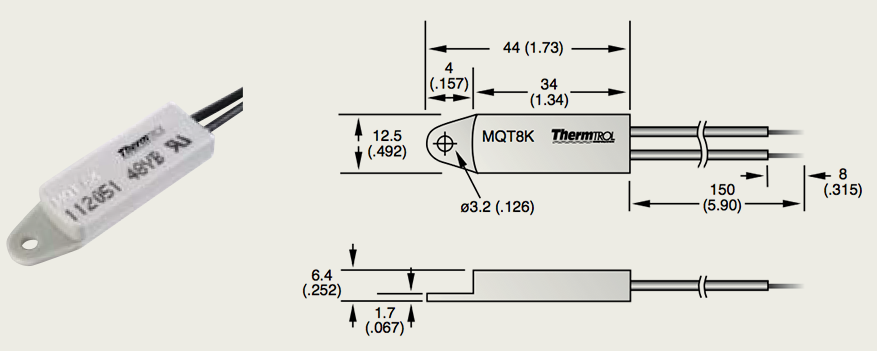

MQT8K
With mounting hole. UL: E104206 VDE: 102854 BEAB: C0935

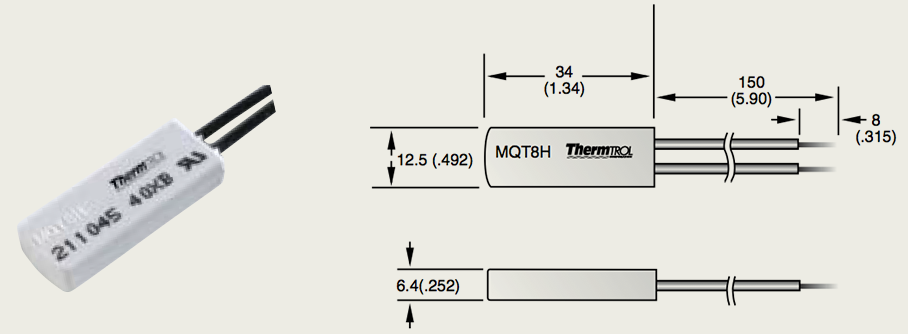

MQT8H
No mounting hole. UL: E104206 VDE: 102854 BEAB: C0935

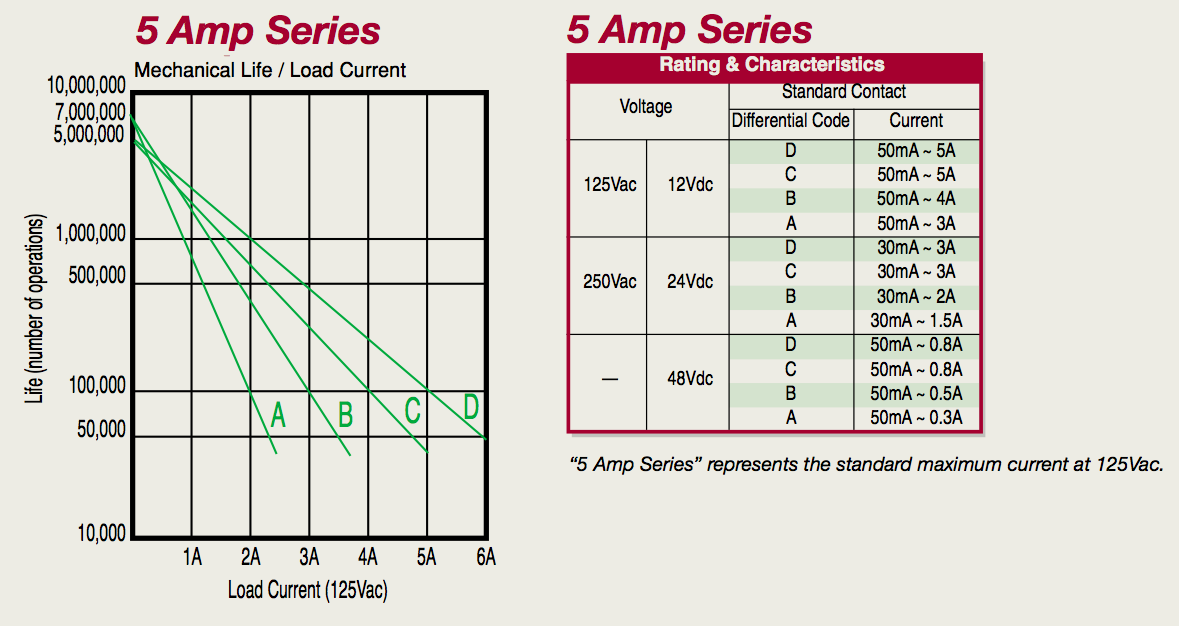

5 Amp Series Set Temperature Availability from -10°C to 110°C

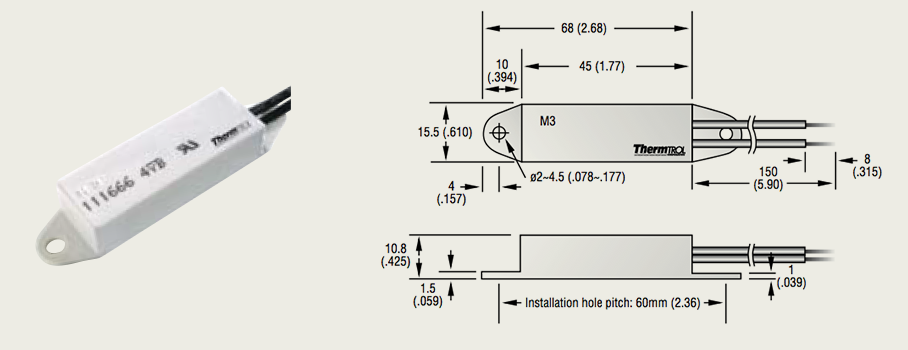

M3
With mounting hole. UL: E104206 VDE: 102855 BEAB: C0935

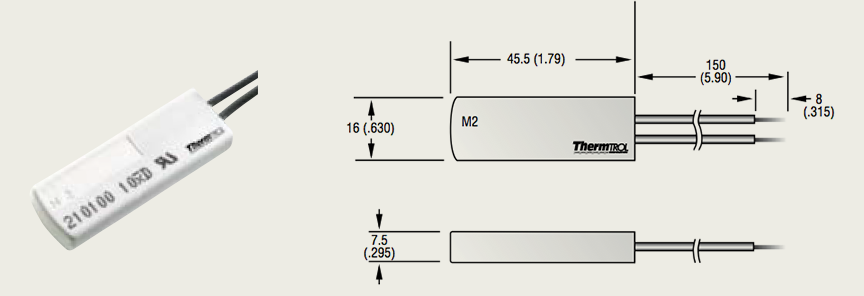

M2
No mounting hole. UL: E104206 VDE: 102855 BEAB: C0935

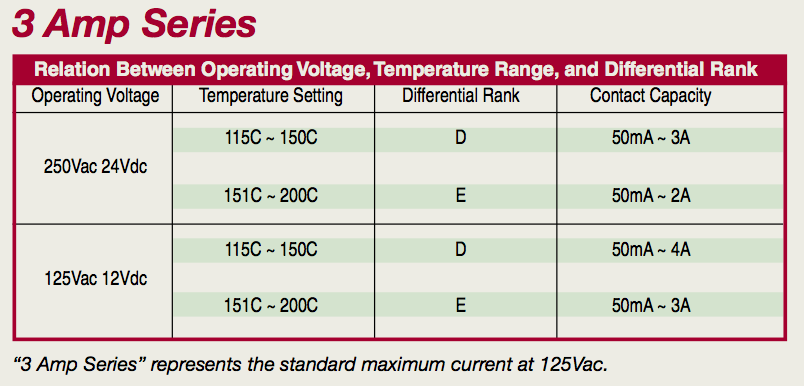

3 Amp High-Temperature Series Set Temperature Availability from 115C to 200C

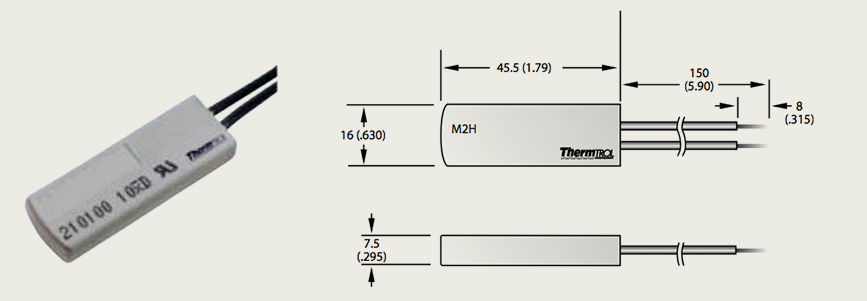

M2H
No mounting hole. UL: E104206 VDE: 102855 BEAB: C0935
