Standard capillary length of 39” (1,000 mm); other lengths special order
Supplied complete with adjustment knob, bezel & mounting screws
All adjustable models avail- able special order with screw adjustment instead of knob

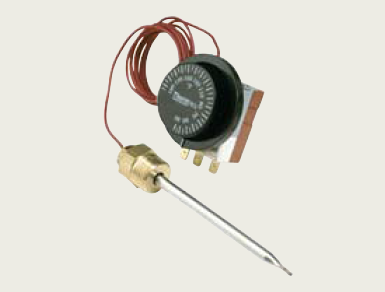

All models available with bushing for sealing
Fixed temperature and fixed temperature with manual reset versions available
Special high-pressure (HP) versions available
Applications
Food service equipment
Mold platens

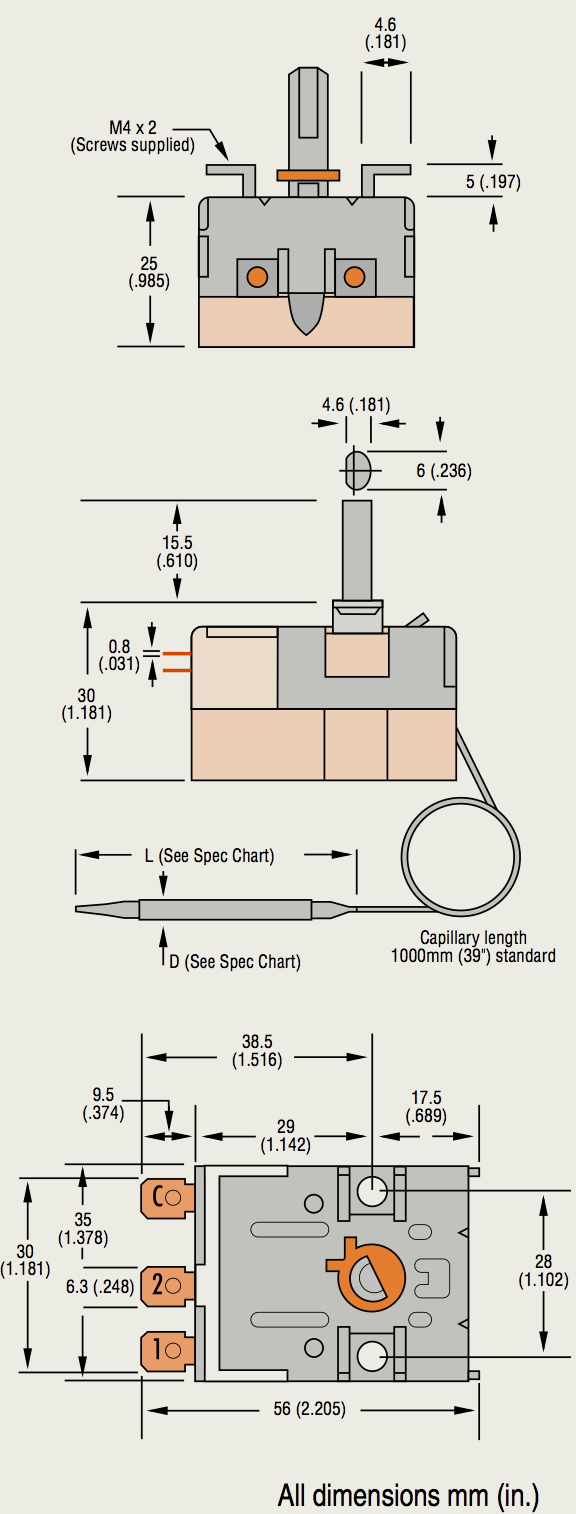

M4 x 2• Electric heaters (Screws supplied) 25 (.985)
Refrigerators and freezers5 (.197)
Test pots & temperature control chamber
Livestock warmers
Agricultural equipment
Environmental controls
Vending machines
Electric & gas ovens

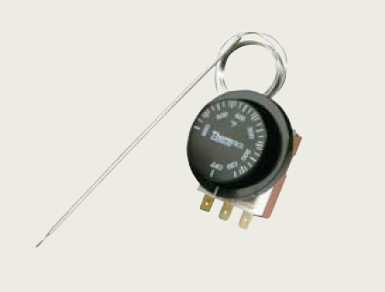

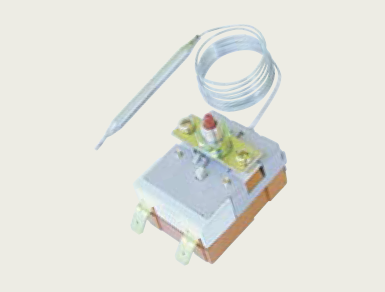

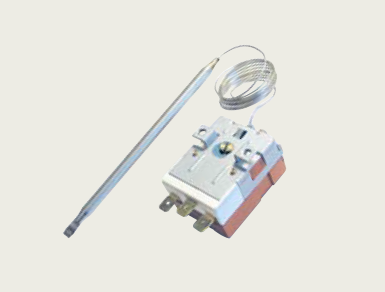

Thermtrol offers the versatile TS Series of adjustable bulb and capillary thermostats suitable for applications requiring variable temperature setting ability and remote control. The TS Series design incorporates a changeover thermal switch and an auxiliary switch useful for fan control or alarm signal. A variety of available features, a large in-stock inventory, and a surprisingly low price combine to make the Thermtrol TS Series bulb and capillary thermostat an excellent value.
